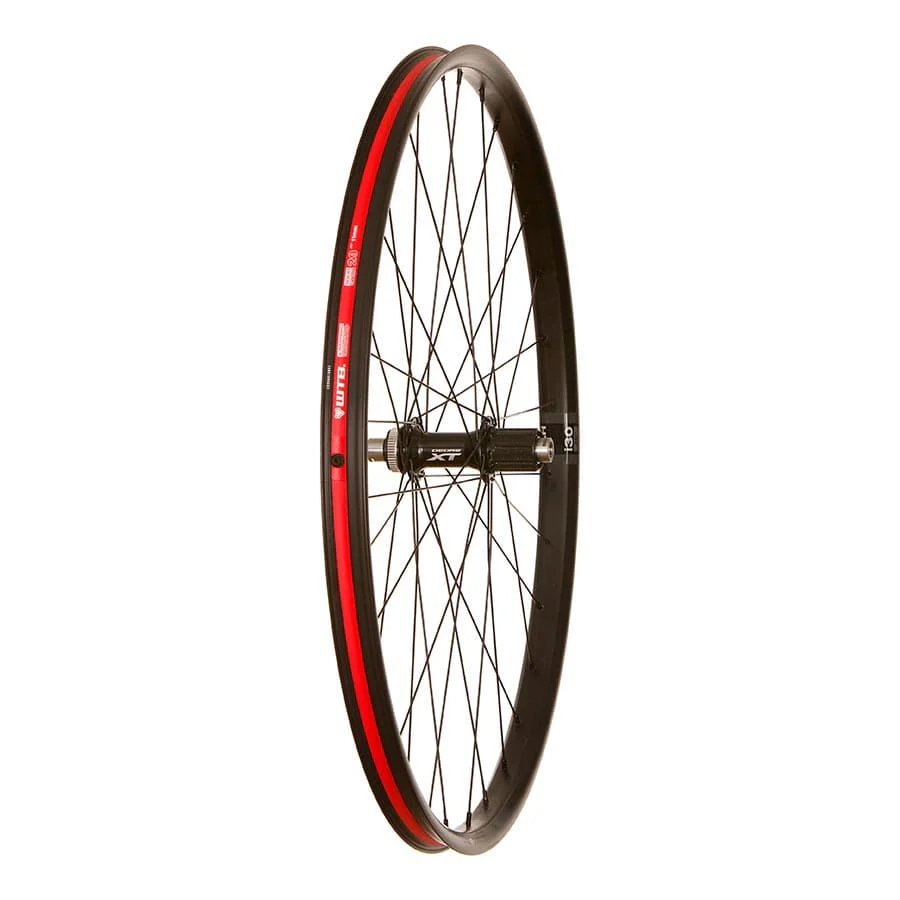

Rims: WTB HTZ i30 29''

• ETRTO 622-30

• Inner width: 30mm

• 6061 series aluminum

• Asymetric and angled spoke hole drilling distributes spoke tension more evenly

• Reinforced I-Beam profile

• Strong sleeved joint

• Drilled for Presta valve

• TCS 2.0 Tubeless System compatible

• Solid Strip included

• Tubeless valve included

• 32 holes

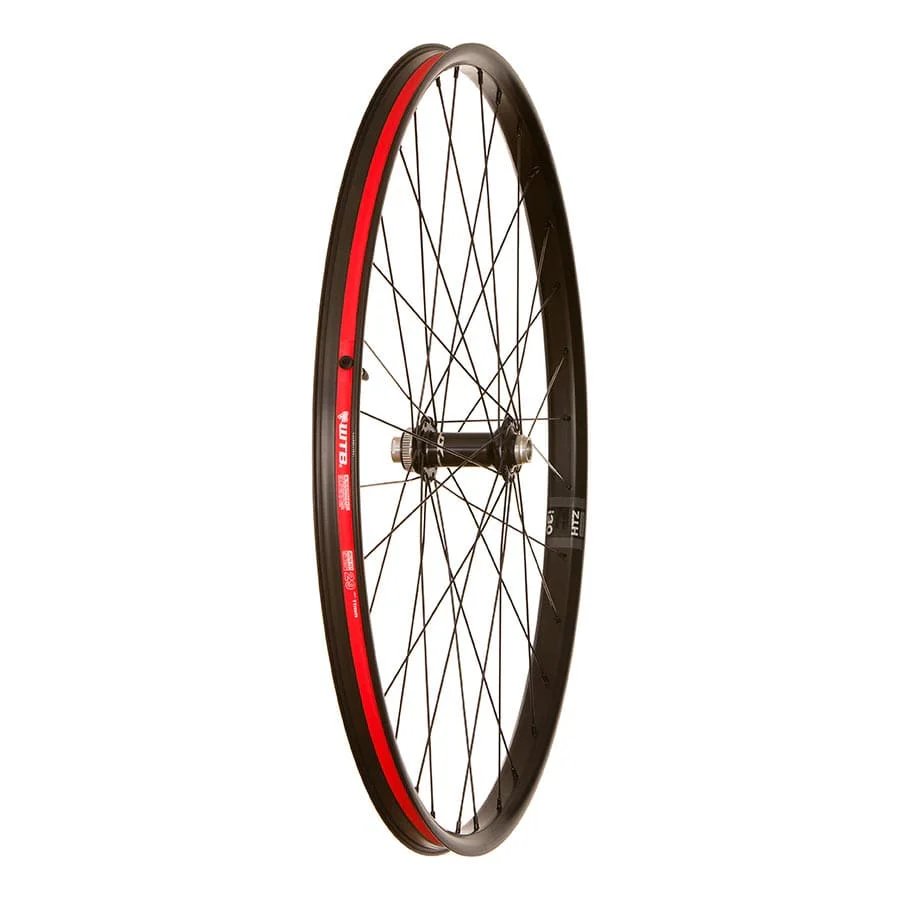

  Front hub: Shimano XT HB-M8110-B Boost

• 15x110mm (Axle not included)

• Center Lock (6-Bolt adapter included)

• Polished angular contact bearings

• Contact sealed hub

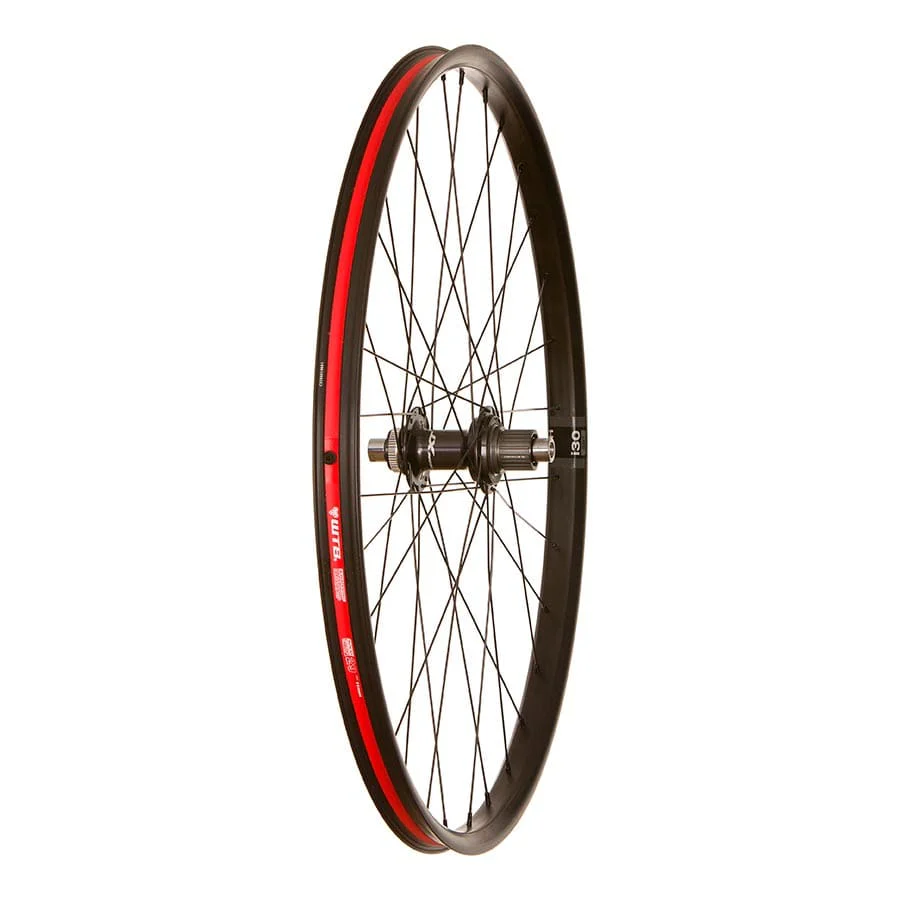

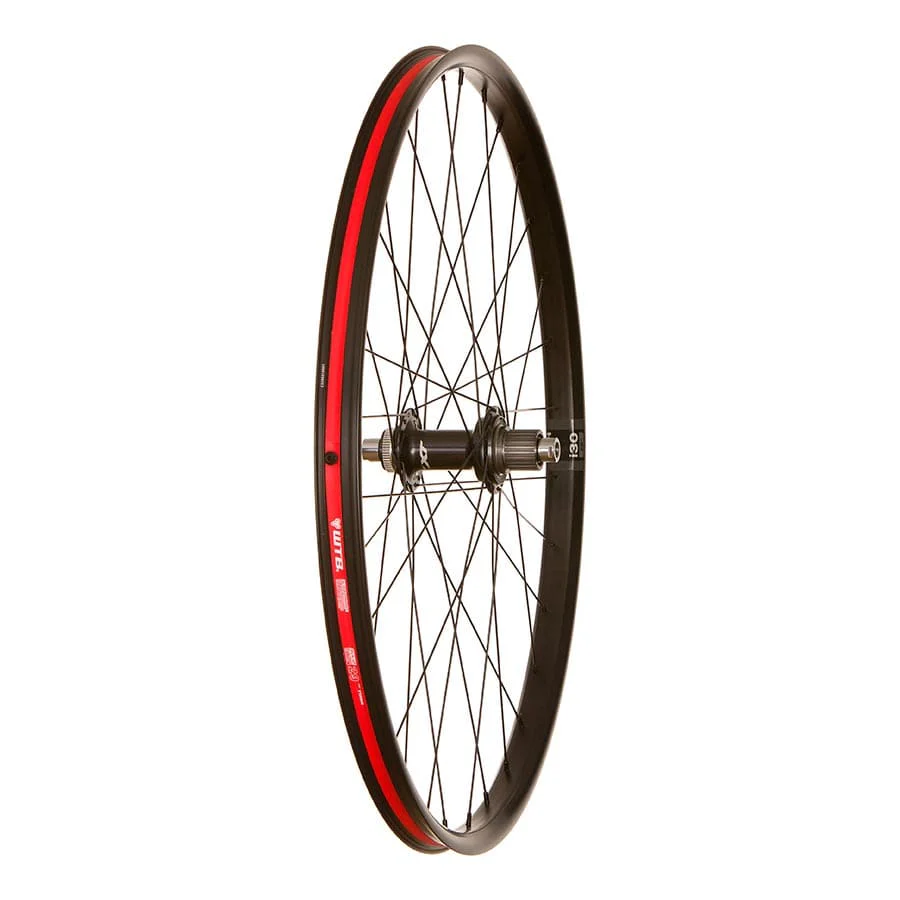

  Rear hubs options: Shimano XT FH-M8010-B (Boost, HG) / FH-M8110-B (Boost, MS) / FH-M8130-B (SuperBoost, MS)

• Center Lock (6-Bolt adapter included)

• Quick Engagement Freehub, 36 Points, 10 deg. engagement

• HG compatible Shimano 11spd and Sram NX / SX splined 12spd (10spd and below needs spacer)

• MS compatible 12 Spd Shimano Micro Spline only

  Assembled in North America by experienced wheelbuilders with Sapim Race spokes (Black), Brass Polyax Nipples (Black)

Attributes

Rim Construction	Double wall, Sleeved
Rim inner width range	28-34.9mm
Depth	19mm
Rim Color	Black
Rim Drilling	32
Valve	Presta
Wheel Diameter/ISO	29'' / 622
Wheel Tire Type	Tubeless Compatible
Wheel-Brake Comp.	Disc Center Lock / IS 6-Bolt
Rim External Width	34mm
Rim Internal Width	30mm
Rim Material	Aluminum
Rim Model	WTB HTZ i30
Skewers Included	No
Spoke Type	Sapim Race
