Rims: WTB ST i23 700C

• ETRTO 622-23

• Inner width: 23mm

• Disc Brake Only

• Drilled for Presta valve

• TCS 2.0 Tubeless System compatible

• Solid Strip (included)

• 32 holes

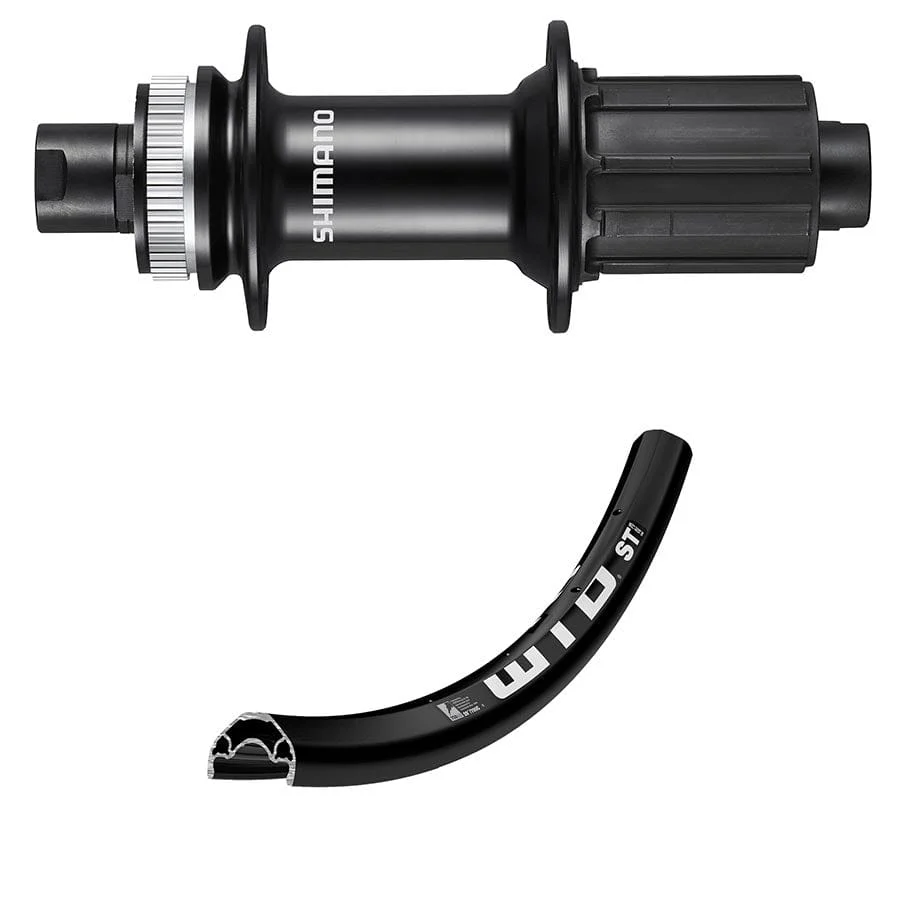

  Front hub: Shimano HB-RS470 Tiagra series

• 12x100mm E-THRU (Axle not included)

• Center Lock Disc Mount

• Polished angular contact bearings with Internal Grease Sleeve

• Contact sealed hub

  Rear hub: Shimano FH-RS470 Tiagra series

• 12x142mm E-THRU (Axle not included)

• Center Lock Disc Mount

• Polished angular contact bearings with Internal Grease Sleeve

• Contact sealed hub and freehub body

• Compatible with 11/12 speed Road (10 speed compatibility requires 1.85mm spacer, not included)

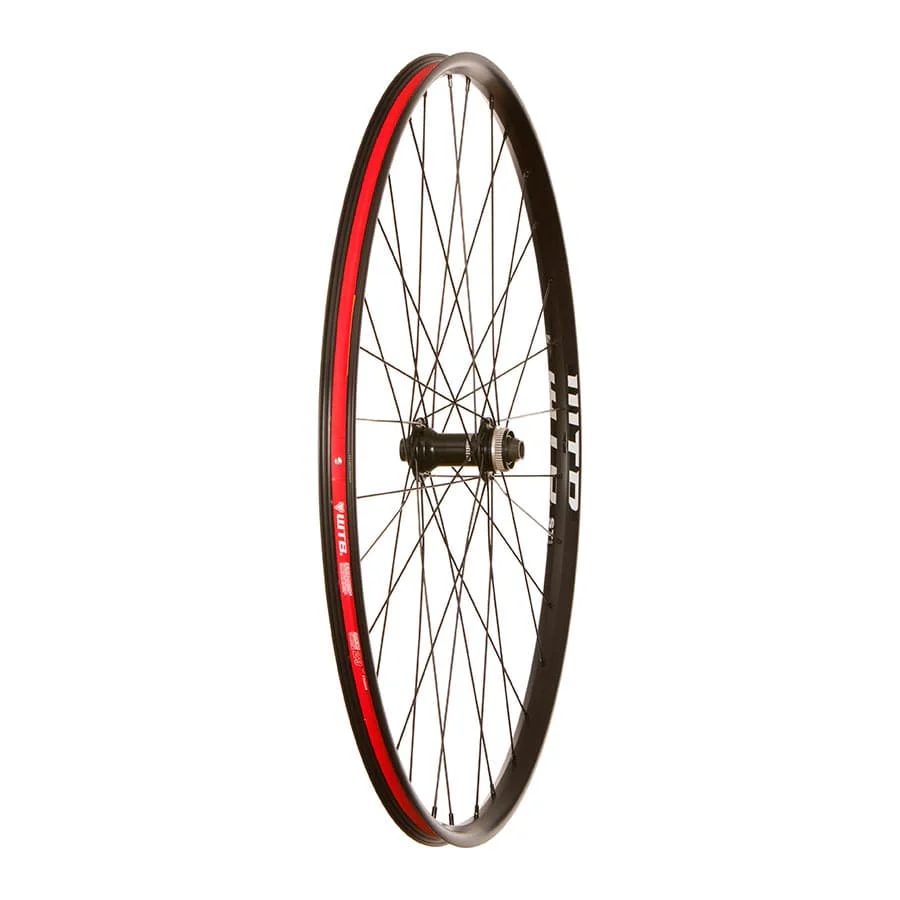

  Assembled in North America by experienced wheelbuilders with Sapim Race Butted Stainless Steel spokes (Black) and 14mm Brass Polyax Nipples (Black)

Attributes

Rim Internal Width	23mm
Spoke Type	Sapim Race
Axle Type	12mm TA
Rim Model	WTB ST i23
Depth	18mm
Rim External Width	27mm
Skewers Included	No
Rim Construction	Double wall
Rim Drilling	32
Rim inner width range	22-27.9mm
Valve	Presta
Wheel Diameter/ISO	700C / 622
Rim Material	Aluminum
Wheel Tire Type	Tubeless Compatible
Rim Color	Black
Wheel-Brake Comp.	Disc Center Lock
Freehub Body	Shimano HG 11
